A laminar air flow cabinet is designed to provide a clean, particle-free working environment by directing HEPA-filtered air in a unidirectional flow across the work surface. It offers a sterile, controlled area for scientific activities such as sample preparation, microbiological testing and aseptic manipulation, protecting products and processes in research, medical and pharmaceutical laboratories.
| External Size | 1060 x 798 x 2200 mm |
| Internal Size | 959 x 635 x 555 mm |
| Airflow Direction | Vertical |
| Body Material | Metal sheet, 1.2 and 2.0 mm thick |
| Worktop Zone Material | Stainless steel SUS 304 |
| Finishing | Epoxy powder coating |
| Work Surface Height | 300 mm |
| Window Sash | Tempered glass, 5 mm thick |
| Casters | Universal casters with leveling feet |
| Filter | HEPA filter |
| HEPA Filter Efficiency | H13, ≥99.99% at 0.3 µm (based on EN 1822) |
| Control System | 7" LCD touch screen HMI with built-in PLC |
| Sensor | Temperature & humidity |
| Lighting | 1 pc fluorescent lamp, 14 W |
| UV Lamp | 1 pc UV lamp, 18 W |
| Electrical Sockets | 2 pcs single electrical sockets (universal type) |
| ON/OFF Switch | Key switch |
| Model | Laminar Air Flow (NDS-LAF) |
| External Size | 1060 x 798 x 2200 mm |
| Internal Size | 959 x 635 x 555 mm |
| Airflow Direction | Vertical |
| Material Specification (Body) | Metal thickness 1.2 and 2.0 mm |
| Material Specification (Worktop Zone) | Stainless Steel SUS 304 |
| Finishing | Epoxy Powder Coating |
| Work Surface Height | 300 mm |
| Window Sash | Tempered Glass thickness 5 mm |
| Caster | Universal wheel with leveling feet |
| Filter | HEPA Filter |
| HEPA Filter Efficiency | H13, ≥99.99% at 0.3 µm (based on EN1822) |
| Control System | 7″ LCD Touch Screen HMI built in PLC |
| Sensor | Temperature & Humidity |
| Lighting | 1 pc Flourescent Lamp 14 Watt |
| UV Lamp | 1 pc UV 18 Watt |
| Electrical Socket | 2 pcs Electrical Single Socket Universal Type |
| ON/OFF Switch | Key Switch |
| Model | Laminar Air Flow (NDS-LAF) |
| Technical Features | |
|---|---|
| Compliance with Standards | GMP (Good Manufacturing Practice), ISO, SNI, and sector-specific regulations. |
| Chemical & Biological Safety | Resistance to corrosion, fire safety, and appropriate ventilation systems. |
| Workflow Efficiency | Ergonomic design, zoning for clean and non-clean areas, and seamless material flow. |
| Durability & Maintenance | Use of high-quality materials (PP, stainless steel, epoxy tops) that withstand long-term industrial use. |
| Flexibility & Scalability | Modular furniture and equipment that can adapt to changing processes. |
Nadiso Laminar Air Flow Model:
With more than 25 years of experience in laboratory furniture and equipment, Nadiso delivers Laminar Air Flow cabinets with tested H13 HEPA filtration, a corrosion-resistant stainless steel SUS 304 worktop and a 7″ PLC-based HMI touch screen control. Learn more about Nadiso on our About Us page.
Nadiso Laminar Air Flow uses vertical (downflow) airflow filtered through an H13 HEPA filter. Air flows from the top down across the work area to keep conditions sterile and particle-free at all times.
The HEPA filter has H13 efficiency and captures ≥99.99% of particles at 0.3 µm (based on EN 1822), keeping the work area free of contaminants while handling samples or sterile materials.

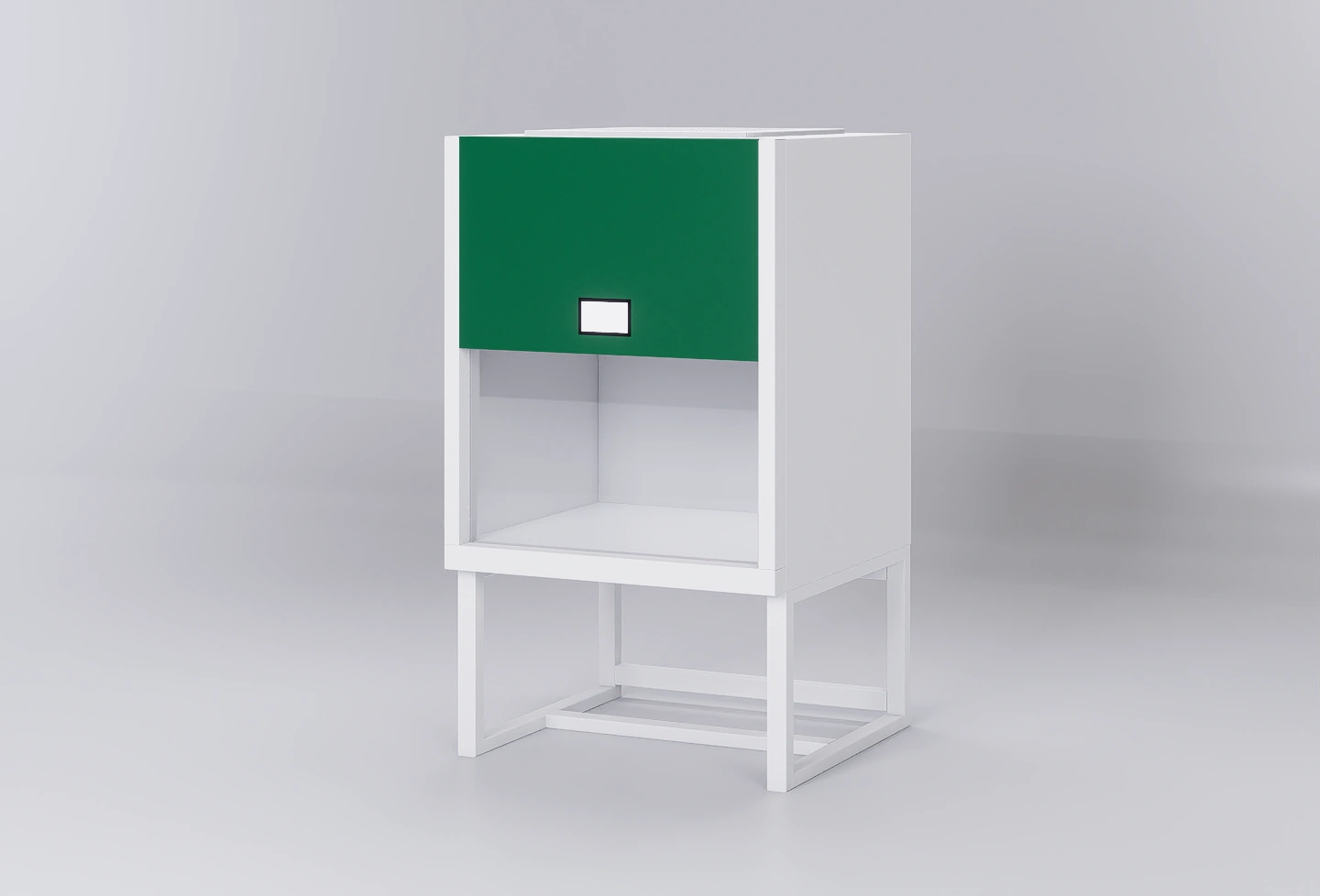

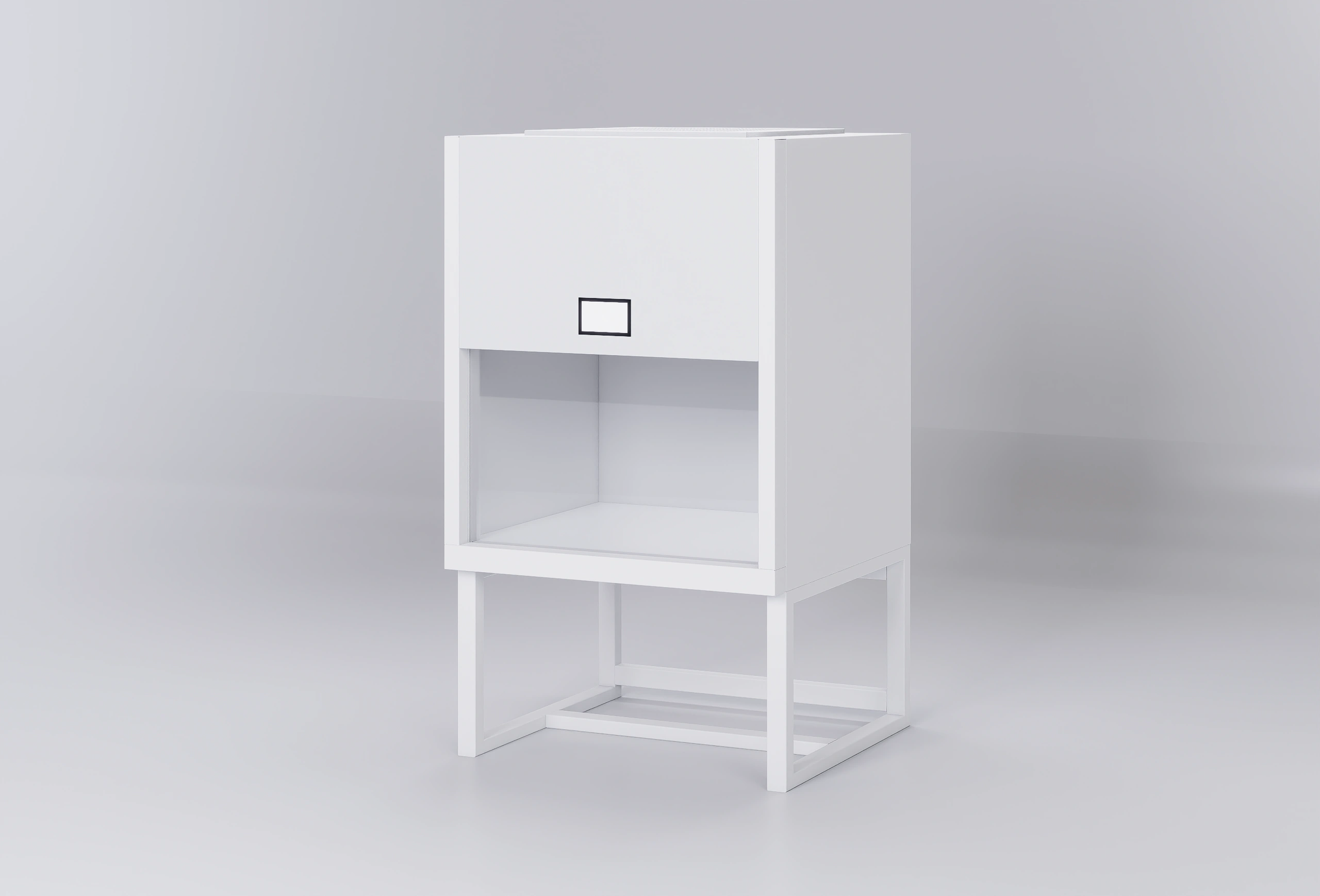

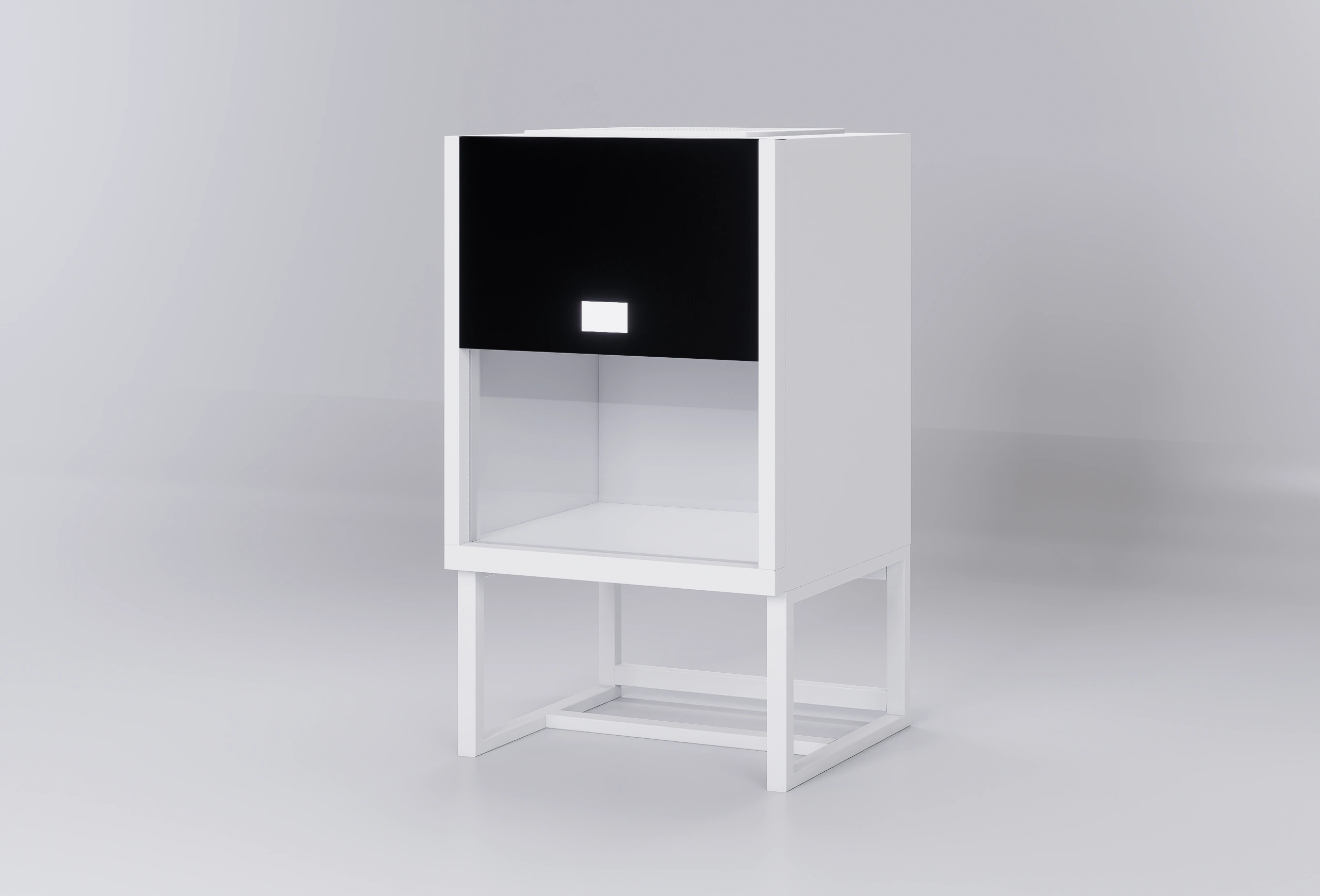

Yes. Nadiso Laminar Air Flow is available in 11 panel colors: White, Black, Red, Yellow, Lemon Green, Green, Nadiso Green, Hazardous Blue, Acid Blue, Aviator Grey and Box Grey,, so it can match the look and identity of your laboratory.
